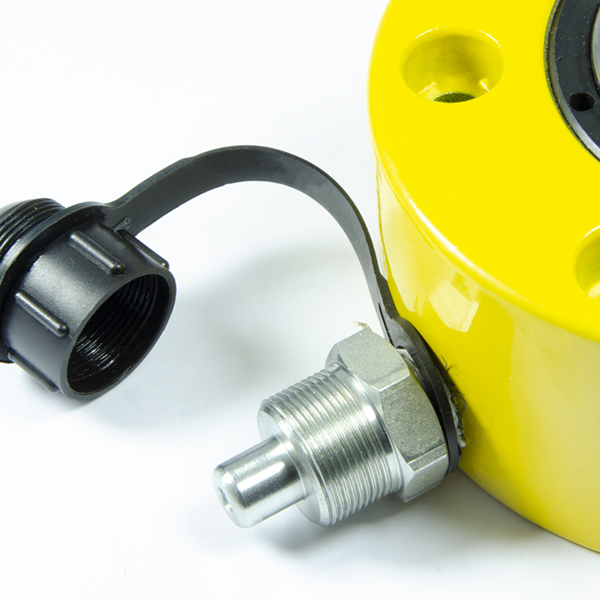

Fitted with stopping ring, this protects the cylinder when the piston comes to a stop because it absorbs the weight from the other side Spring loaded piston which allows for quick release Chrome plated cylinder wall and primary piston to prevent corrosion and reduce friction Tundra® Hydraulic Cylinders provide a reliable device for safely lifting large structures
Tonnage Capacity: 30 Tonne Stroke: 13mm Min. Oil Required: 55cm³ Closed Height: 62mm Extended Height: 75mm Dimensions: 123mm x 98mm Inside Diameter: 75mm Piston Rod Diameter: 64mm Net Weight: 4.6kg
Individual Product Details
Height: 200mm - Width: 120mm - Length: 100mm - Weight: 4kg
